Mining Stone Crusher Machine Spring Cone Crusher With 90-1200T/H Output

Mining Stone Crusher Machine Spring Cone Crusher With 90-1200T/H Output

1. Overview of Spring Cone Crusher Stone Crusher Machine

Output: 90-1200T/h

Feed size: ≤ 391MM

Applicable materials: basalt and other hard materials

Application: Used in metallurgical industry, building materials industry, road industry, chemical industry and silicate industry, suitable for crushing medium and above medium hardness of ores and rocks.

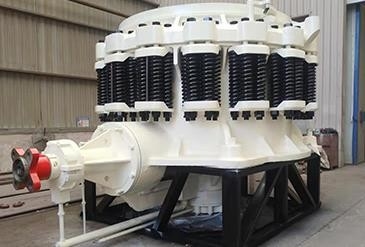

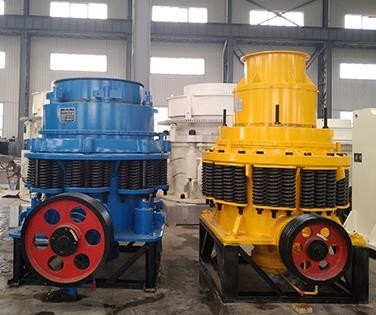

2. Product introduction of Spring Cone Crusher Stone Crusher Machine

Spring cone crusher is suitable for crushing ore and rock with medium or higher hardness. It has the characteristics of reliable structure, high production efficiency, convenient adjustment and economical use. The spring safety system plays the role of overload protection, which can make the foreign iron block pass through the crushing chamber without harming the crusher. Glycerin seal form, so that dust and lubricating oil isolation, ensure reliable work. Standard type, medium type and short head type can be selected according to customer requirements for coarse crushing, medium crushing and fine crushing operation.

The conical breaking cone under the action of the eccentric set to do rotary pendulum movement, drive the broken wall and the rolling mortar wall of the material extrusion, rubbing, according to the laminating theory, the material is subjected to multiple directions of the force, according to its own texture is broken and polished, the formation of stable stone particles, meet the discharge requirements from the broken wall of the swing gap fall, the rest of the material continue to be broken until the requirements.

3. Product parameters of Spring Cone Crusher Stone Crusher Machine
