Product Details:
Payment & Shipping Terms:
|
| Model: | Horizontal Vibrating Centrifuge | Processing Capacity (dry Material): | 30-350 T/h |
|---|---|---|---|
| Name: | TWZ Horizontal Vibrating Centrifuge | Product Moisture: | 5-9 % |
| Seam Screen Size: | 0.25,0.3,0.35,0.5 Mm | Feed Size: | ≤50mm |
| Condition: | New | Sieve Basket Vibration Frequency: | 25 Hz |
| Application: | Manufacturing Plant, Mining | Double Amplitude: | 4-6 Mm |
| Type: | Ore Dressing Equipment | Warranty: | 12 Months |
| Highlight: | 10 T Horizontal Vibrating Centrifuge,2.5T Horizontal Vibrating Centrifuge,10 T centrifuge vibration |
||

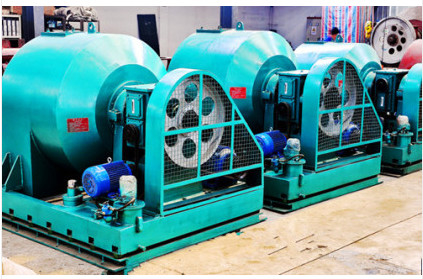

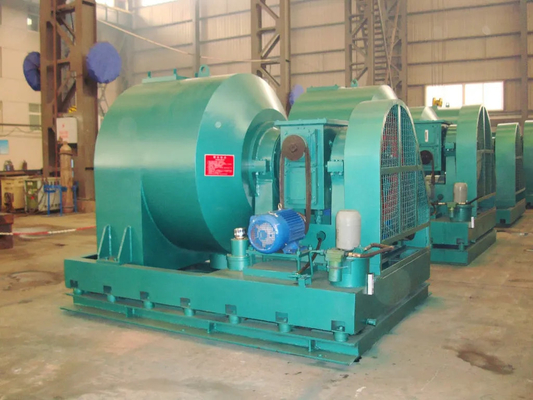

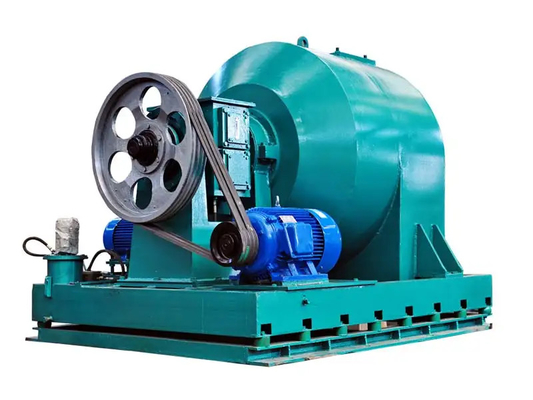

2.5-10 T TWZ Horizontal Vibrating Centrifuge Of Ore Dressing Equipment
1. Working principle of horizontal vibration centrifuge of ore dressing equipment:
Material by hanging enamel feed tube and screen into the bottom of the screen blue, screen blue material by centrifugal force close to the screen surface, under the action of vibration, the material layer evenly to the screen blue end of the movement, dehydration of the material from around the screen blue, falling into the lower shell of the discharge mouth. It goes down. The moisture in the material, under the action of centrifugal force through the material layer and screen joints, thrown around the shell.
2. Main features of horizontal vibration centrifuge of ore dressing equipment:
(1) Large processing capacity, good dehydration effect.
(2) the product crushing degree is small, screen blue is not easy to wear, long life.
(3) TWZ system is an inertial over-resonant vibration system with stable amplitude and reliable frequency.
(4) TWZ vibration system has the advantages of smooth operation, low noise, simple structure, convenient maintenance and energy saving.
3.Product parameters of horizontal vibrating centrifuge of ore dressing equipment:
| SPEC | Unit | Model | ||||||
| TWZ850 | TWZ10A | TWZ850 | TWZ850 | TWZ850 | TWZ850 | |||
| Feed size | mm | ≤ | 0～25 | 0.5～50 | 0～50 | ≤50 | 0.5～50 | |
| Processing power | t/h | 30～50 | 50～100 | 100～150 | 180～250 | 200～300 | 250～350 | |
| Product water | % | 5～9 | ||||||
| Big end diameter of sieve basket | mm | 850 | 100 | 1150 | 1300 | 1400 | 1500 | |
| Seam screen size | mm | 0.25,0.3,0.35,0.5 | ||||||
| Sieve basket vibration frequency | Hz | 25 | 25 | 25 | 25 | 25 | 25 | |
| Double amplitude | mm | 4～6 | 4～6 | 4～6 | 4～6 | 4～6 | 4～6 | |
| Main motor power | Kw | 15 | 22 | 37.5 | 45 | 55 | 75 | |
| Vibration motor power | Kw | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Oil pump motor power | Kw | 0.37 | 0.37 | 0.55 | 0.55 | 0.55 | 0.55 | |
| Dimension | L | mm | 2060 | 2150 | 2800 | 2700 | 3100 | 3170 |
| W | mm | 1510 | 1875 | 1930 | 2260 | 3090 | 2975 | |
| H | mm | 1652 | 1765 | 1930 | 2245 | 2295 | 2400 | |
| Device weight | Kg | 2500 | 2620 | 5527 | 6500 | 9200 | 10000 | |
Note: The external moisture of the product is related to the nature, particle size composition and handling capacity of the material, but mainly depends on the slime content of the material. -0.5mm particle size content in feeding < 10%, the external moisture of the product is generally 5~9%.
Instructions for Ordering:
(1)Screen gaps can be supplied according to user requirements.
(2)The host set of supply (including motor).
(3)Spare parts will be ordered separately.
