Product Details:
Payment & Shipping Terms:
|
| Type: | Hammer Crusher Hammer | Machine Type: | Crusher |
|---|---|---|---|
| Material: | High Manganese Steel, High Chrome Crusher Hammer | Processing Type: | Casting |
| Use: | Ore Mining | Control: | Spectrometer Chemical Analysis And Control While Producing |
| Molding Process: | Water-glass Sand Casting Or Lost Form Casting | Melting Facility: | Medium Frequency Electric Furnace |
| Heat Treatment: | Anneal, Quenching, Tempering | Testing: | Hardness, Flaw Detector Test |
| Certificate: | ISO9001~2008 Passed; BUREAU VERITAS | Port: | QingDao,ShangHai,TianJin |
| Highlight: | High Manganese Steel Hammer,ZG120Mn13Cr2 Manganese Steel Hammer,ZG120Mn13Cr2 Heavy Crusher Hammer |
||

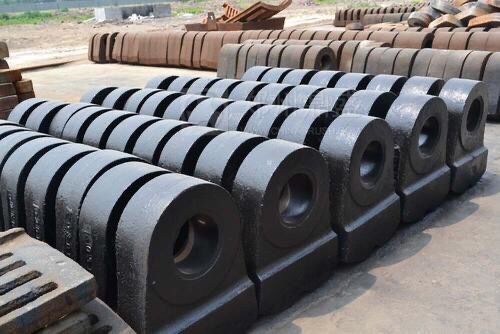

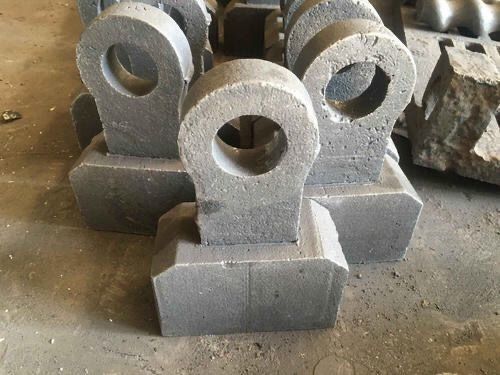

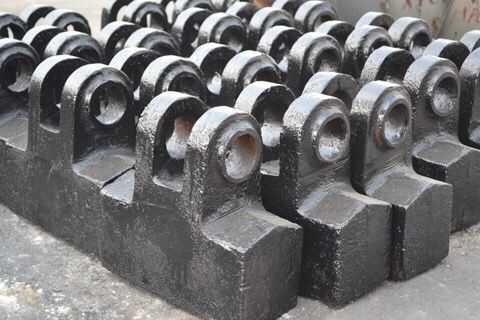

High and low chromium cast iron crusher hammers
Hammer Details:
|
High Mn Imbedding Cemented Carbide Hammer |
|
|
Alloy steel material |
High Mn with Tungsten Titanium Alloy Rod |
|
Contral |
Spectrometer chemical analysis and control while producing |
|
Moulding process |
Water-glass sand casting or lost form mould casting |
|
Melting facility |
Medium frequency electric furnace |
|
Heat treatment |
Anneal, quenching, tempering |
|
Quality Guarantee |
One year against manufacturing defeat |
|
Testing |
Hardness, flaw detector test |
|
Suit Filed |
Cement, mining,quarry,electricity and metallurgy companies |
|
Certificate |
ISO9001:2000/ BV/ China Patent No. 200810049101.2 |
Specifications:
|
Standard |
Chemical component % |
|||||
|
C |
Mn |
Si |
Cr |
S |
P |
|
|
ZG120Mn13Cr2 |
1.05~1.35 |
11~14 |
0.3~0.9 |
1.5~2.5 |
≤0.04 |
≤0.04 |
|
ZG120Mn17Cr2 |
1.05~1.35 |
16~19 |
0.3~0.9 |
1.5~2.5 |
||
|
Notes:Allowed to join trace V,Ti,Ba and RE and so on. |
||||||
The mechanical properties of the matrix:
|
Standard |
Lower yield strength Rel |
Tensile strength Rm |
The section elongation A% |
Shock absorption KU2 |
Hardness HBW |
|
ZG120Mn13Cr2 |
≥390 |
≥735 |
≥20 |
— |
≤300 |
For crushing equipment
Hammer -The main working part of the hammer crusher is the rotor with hammer head. The rotor is composed of main shaft, disc, pin shaft and hammer head.The material is fed into the machine from the upper feed port and crushed by the impact, impact, shearing and grinding of the high-speed hammer. 1. Withstand high impacts, the shank must have high strength and toughness combined with comprehensive mechanical properties. The hammer head should have high hardness and high wear resistance-composite hammer head is the best choice. 2. Hammer head, sieve plate, various lining plates of hammer crusher.
Suitable Material:
High chrome,bimetal composite,high manganese steel,high manganese insert alloy bar,high manganese welding,medium alloy ,ceramic composite.
Aftersales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
