Product Details:
Payment & Shipping Terms:
|
| Product Name: | NE Series Plate Chain Bucket Elevator | Usage: | Vertical Lifting And Conveying |
|---|---|---|---|
| Keyword: | Large Conveying Capacity | Model: | NE Series |
| Max. Delivery Size(mm): | 50-240 | Max. Lift(m3/h): | 32-600 |
| Operating Speed(m/min): | 15-30 | Bucket Distance(m): | 0.3-0.7 |
| Bucket Capacity(m3): | 0.0078-0.330 | ||
| Highlight: | 600m3/H Conveying Hoisting Machine,600m3/H chain type bucket elevator,40M Height chain type bucket elevator |
||

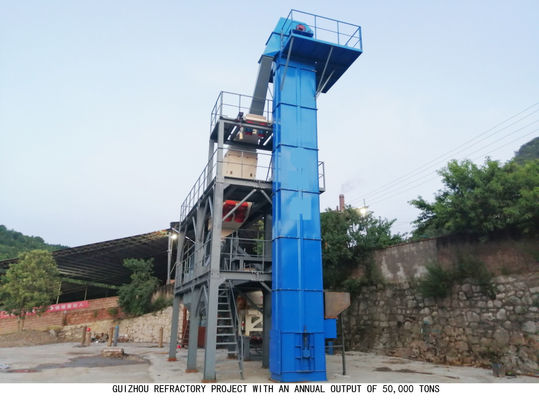

40 meter height higher temperature material NE series plate chain bucket elevator
Product overview
NE series plate chain bucket elevator is suitable for vertical lifting and conveying powdery, granular, small abrasive or non-abrasive materials, such as coal, cement, sand, clay, ore, etc., due to the traction of the elevator The mechanism is a circular two-way steel chain, so it is allowed to convey materials with higher temperature (the material temperature does not exceed 250 ℃), and the general conveying height can reach up to 40 meters. This machine has a large conveying capacity, high lifting height, stable and reliable operation, and longevity Long and other significant advantages, widely used in various industries in the national economy.
working principle
The NE series plate chain bucket elevator consists of the traction part rewinding on the head driving sprocket and the rear reversing sprocket. Driven by the driving device, the driving sprocket drives the traction component and the hopper to make a rotary circular motion. The tail inlet enters each hopper. When the material is lifted to the head, as the traction part and the hopper turn over, the material is discharged from the outlet under the action of gravity and centrifugal force.
advantages
Fully sealed structure, good dust removal effect
Small footprint and space saving
Convenient operation, low maintenance, and few wearing parts
Split gear for easy replacement
Large conveying capacity, lifting range is 32-600㎥/h
Vertical lifting smooth and reliable operation
Ribbed design, good rigidity and high strength
Wear-resistant liner of inlet and outlet is not easy to wear
High-quality special material plate chain

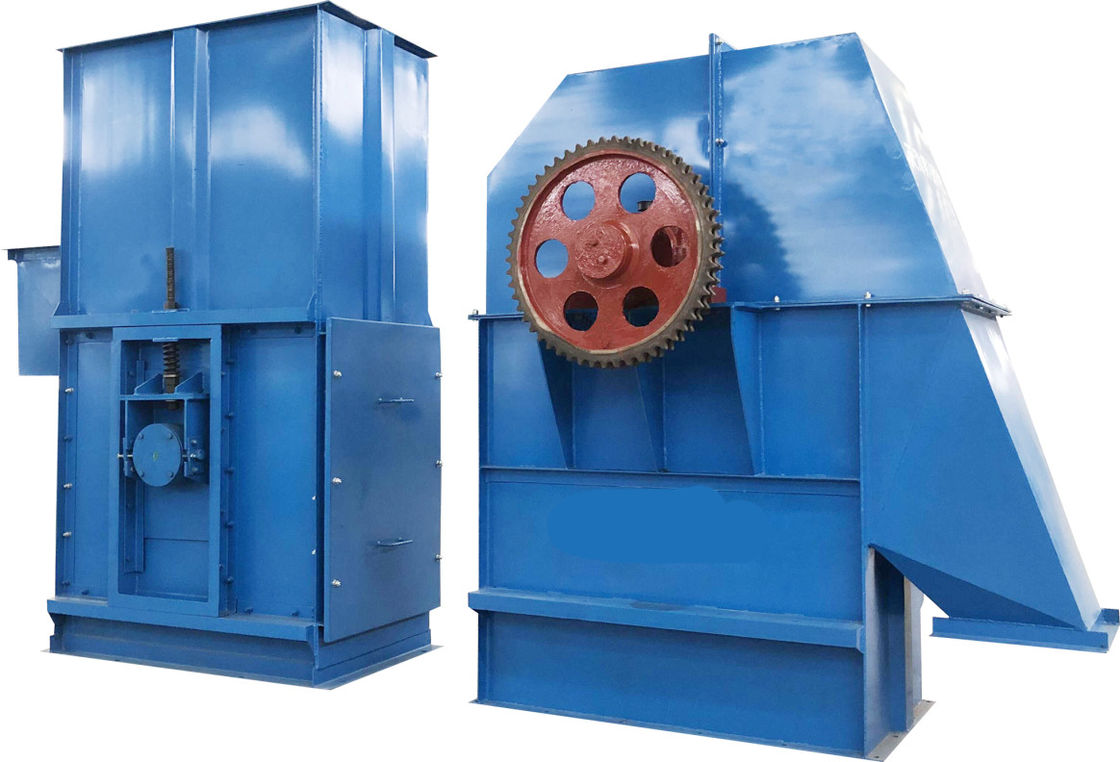

Tail tightening mechanism
Thick wear-resistant material hopper
Sprocket assembly
Double plate chain design runs smoothly
Technical parameters
| Model | Max. delivery size(mm) | Max. Lift(㎥/h) | Operating speed(m/min) | Bucket distance(m) | Bucket Capacity(㎥) |
| NE30 | 50 | 32 | 15-30 | 0.3 | 0.0078 |
| NE50 | 60 | 60 | 15-30 | 0.3 | 0.0157 |
| NE100 | 70 | 100 | 18-31 | 0.4 | 0.033 |
| NE200 | 80 | 220 | 23-29 | 0.5 | 0.089 |
| NE300 | 90 | 300 | 22-28 | 0.5 | 0.134 |
| NE400 | 100 | 440 | 24-31 | 0.6 | 0.1766 |
| NE500 | 100 | 500 | 24-31 | 0.7 | 0.228 |
| NE600 | 240 | 600 | 30 | 0.7 | 0.330 |
