Product Details:
Payment & Shipping Terms:
|
| Product Name: | Ultra-fine Powder Mill | Key Words: | Mill |
|---|---|---|---|
| Item: | Ultra-fine Powder | Ultra-fine Powder: | Ultra-fine Powder |
| Quality: | ISO,CE | Advantage: | High Degree Of Sealing |
| Highlight: | 4.5TPH Ultra Fine Powder Mill,800mm Ultra Fine Powder Mill,4.5TPH fine powder mill grinder |
||

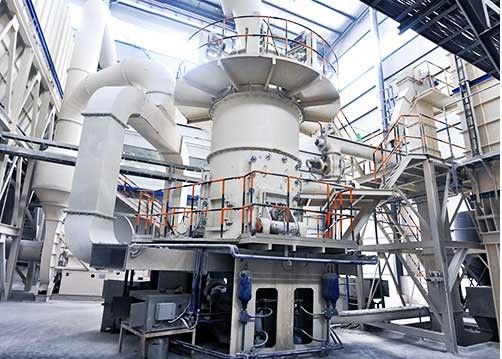

high-efficient ultra-fine powder mill grinding powder equipment
Brief introduction of ultra-fine powder mill
Ultra-fine powder mill is a high-efficient ultra fine powder grinding mill, comparable to air-blast mill, newly designed by our experts on the basis of industrial mill manufacturing experience for many years, which adopts the theory of fluidics and successfully solves the problem of high cost in domestic air-blast mill.
The new type of grinding roll assembly changes the traditional structure, using various means of sealing, getting rid of three defects of old assembly, i.e. oil leak, dust coming in, and disalignment.
The purpose and scope of application for ultra-fine powder mill
Ultra-fine powder mill is mainly used in grinding conventional materials i.e. non-flammable materials with humidity less than 8%, Mohs hardness below 6, such as kaolin, limestone, calcite, talc, marble, barite, gypsum, iron oxide red, iron oxide green, aluminum hydroxide, pigment, bentonite,
pottery clay, etc.
| Model | XM80 | XM90 | XM100 | XM100A | XM125 |
| Average working diameter/mm | 800 | 930 | 1035 | 1035 | 1300 |
| Quantity of ring track/layer | 3 | 3~4 | 3 | 4 | 4 |
| quantity of roller/piece | 21 | 24~32 | 27 | 34~36 | 40~44 |
| Rotational speed of main shaft/r.p.min | 230~240 | 200~220 | 180~200 | 180~200 | 135~155 |
| Feeding particle size/mm | ≤20 | ||||
| Range of finished product particle size/um(mesh) | 5-47(325~2500) | ||||
| Yield of finished product t/H | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1-8.5 | 1.5-12 |
| External dimension length*height*width/m | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10.25 |
| Whole unit capacity/KW | 145-165 | 185-204 | 263 | 263-290 | 380-430 |
