Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Warranty: | 1 YEAR |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining | Local Service Location: | None |
| Showroom Location: | None | Type: | Fan Plate |
| Machine Type: | Disk Filter | Use: | Ore Mining |
| Application: | GPY Series Disk Filter | Model: | GPY-20 |
| Filtration Area (m2): | 20 | Number Of Filter Plates: | 4 |
| Filtration Diameter (mm): | 1800 | Number Of Filter Fans Per Plate: | 10 |
| Port: | QingDao,ShangHai,TianJin | ||
| Highlight: | 1800mm Disc Filter Fan Plate,20m2 Filtration Disc Filter Fan Plate |
||
PG/GPY disc filter sector plate: The new engineering plastic sector plate has light weight, high strength, good hydrophobicity, high opening rate, good dehydration and cake removal effect, low moisture content of filter cake, long service life, corrosion resistance and convenient decoration.

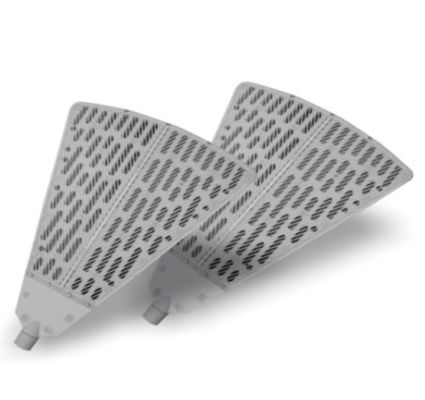

1. Product introduction of fan plate
Fan-shaped plate, disc filter fan-shaped plate, filter plate sector, PG/GPY disc filter sector plate - disc filter fan-shaped plate, a new engineering plastics sector plate light weight, high strength, good hydrophobic, opening rate is high, the better effect of dewatering and cake, filter cake moisture content is low, service life is long, corrosion resistance, convenient decorating.
2. Working principle of disc filter
Disc filter mainly by vacuum pump under the action of forming force difference, the formation of particles on the filter cloth filter cake, and through the filter cake and filter cloth exclude liquid phase, solid-liquid separation, used for 0-0.5mm flotation cleaned coal and tail coal and other fine granular material dehydration, can also be used in metallurgy, chemical, petrochemical, sewage treatment solid-liquid separation.
| Disc filter accessories | |
| The ministry of cylinder | The filter cylinder; Cylinder fold belt |
| The transmission of |
Roll; Worm gear; Worm; Reducer |
| The ministry of filtering | Filter plate; Filter cloth; Vacuum head; Gas-water separator; Wrong disks |
| Apply to | PG / GPY |
| OEM service offered | According to customer’s drawings |
3. Table of related accessories of disc filter:
(1) Cylinder body
Inner filter cylinder, outer filter cylinder, folding cylinder
(2) Transmission department
Roller, worm gear, worm gear, reducer,
(3) Filtration section
Filter plate, filter cloth, vacuum head, gas-water separator, wrong air disc
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
