12000 TPD Cement Production Plant cement rotary kiln factory with high quality

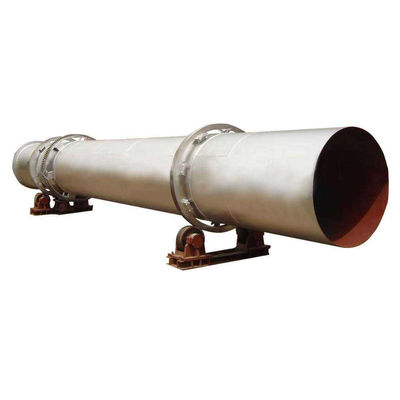

Large Image : 12000 TPD Cement Production Plant cement rotary kiln factory with high quality

Product Details:

Place of Origin:	Henan, China
Brand Name:	CITIC LK
Certification:	ISO/CE
Model Number:	2.5x40-6.0x95 m

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set/Sets
Price:	$100,000.00 - $2,000,000.00 / Set
Packaging Details:	Simple packaging
Supply Ability:	500 Set/Sets per Year

Contact Now

Detailed Product Description

Production Capacity:	180-12000 Tpd	Condition:	New
Voltage:	Cement Rotary Kiln	Power(W):	55-950x2 KW
Dimension(LWH):	2.5x40-6.0x95 M Cement Rotary Kiln	Weight:	150-1659 T
Rotary Kiln:	Cement Rotary Kiln	Model:	2.5x40-6.0x95 M Cement Rotary Kiln
Application Industry:	Cement Plant, Steel Mill, Chemical Plant & Incinerator	Output:	180~12000 T/d Cement Rotary Kiln
2.5x40:	180 Tpd Cement Rotary Kiln	2.5x54:	204tpd Cement Rotary Kiln
3.0x45:	500 Tpd Cement Rotary Kiln	3.2x50:	1000 Tpd Cement Rotary Kiln
3.5x54:	1500 Tpd Cement Rotary Kiln	6.0x95:	10000 Tpd Cement Rotary Kiln
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Warranty:	12 Month
Port:	QingDao,TianJian,ShangHai
Highlight:	12000 TPD Cement Production Plant , Rotary Kiln Cement Plant Equipments , Clinker grinding plant

Product Description

Cement Kiln: Cement Rotary Kiln Wet and Dry Cement Rotary Kiln

CITIC IC developed large new dry process cement rotary kiln product with cement research and design institutes in Tianjin, Nanjing and Hefei by using domestic advanced technology, and the product can match 3000~10000t/d large new dry process cement production line. The company has a first-rate rotary kiln development, research and design team, perfect test and inspection means and excellent large rotary kiln manufacturing equipment and manufacturing technology, and has formed a complete technology and production system integrating rotary kiln design, manufacture, install and debugging service.

6×95 m 10000tpd Cement rotary kiln

5.6×87m 8000tpd Cement rotary kiln

7000 tpd Cement rotary kiln -cement plant for India Binani

Cement Rotary Kiln Wet and Dry Cement Rotary Kiln

Application Industry

Cement Plant, Steel Mill, Chemical Plant & Incinerator
Output

180~10000 t/d

CITICIC Cement rotary kiln technical characteristics:
  ♦ Kiln body is made of high quality composed of carbon steel or alloy steel plate and automatic welding;
♦ Tyre,Support Roller,Open gear adopts alloy cast steel;
♦ Sliding bearing with large gap not scraping tile bearing;
♦ Transmission device adopts hard tooth surface reducer, flexible diaphragm coupling, dc motor;
♦ Adopts hydraulic gear wheel;
♦ Preheater scales were used respectively to veiw of kiln head, and cylinder pressure tight seal;
♦ A slow drive device.

Cement Rotary Kiln Processes Wet and Dry Cement Rotary Kiln

With the arrival of rotary kilns, cement manufacturing processes became sharply defined according to the form in which the raw materials are fed to the kiln. Raw materials were either ground with addition of water, to form a slurry containing typically 30-45% water, or they were ground dry, to form a powder or "raw meal".

In the Wet Process, the kiln system is fed with liquid slurry, the water then being evaporated in the kiln.
In the Semi-Wet Process, raw material is prepared as a slurry, but a substantial proportion (50-80%) of the water is mechanically removed, usually by filtration, and the resulting "filter cake" is fed to the kiln system.
In the Dry Process, the kiln system is fed with dry raw meal powder.
In the Semi-Dry Process, a limited amount of water (10-15%) is added to dry raw meal so that it can be nodulised, and the damp nodules are fed to the kiln system.

Wet process cement rotary kilns Wet and Dry Cement Rotary Kiln

The original rotary cement kilns were called 'wet process' kilns. In their basic form they were relatively simple compared with modern developments. The raw meal was supplied at ambient temperature in the form of a slurry.

A wet process kiln may be up to 200m long and 6m in diameter. It has to be long because a lot of water has to be evaporated and the process of heat transfer is not very efficient.

The slurry may contain about 40% water. This takes a lot of energy to evaporate and various developments of the wet process were aimed at reducing the water content of the raw meal. An example of this is the 'filter press' (imagine a musical accordion 10-20 metres long and several metres across) - such adaptions were described as 'semi-wet' processes.

The wet process has survived for over a century because many raw materials are suited to blending as a slurry. Also, for many years, it was technically difficult to get dry powders to blend adequately.
Dry process cement rotary kilns Wet and Dry Cement Rotary Kiln

In a modern works, the blended raw material enters the kiln via the pre-heater tower. Here, hot gases from the kiln, and probably the cooled clinker at the far end of the kiln, are used to heat the raw meal. As a result, the raw meal is already hot before it enters the kiln.

The dry process is much more thermally efficient than the wet process.

Cement Rotary Kiln Specification Wet and Dry Cement Rotary Kiln

Product specifications(m)	Kiln dimensions			Capacity(t/d)	Rotation speed(r/min)	Motor power(kw)	Total weight(t)
Product specifications(m)	Diameter(m)	Length(m)	Obliquity(%)	Capacity(t/d)	Rotation speed(r/min)	Motor power(kw)	Total weight(t)
Φ2.5×40	2.5	40	3.5	180	0.44-2.44	55	149.61
Φ2.5×50	2.5	50	3	200	0.62-1.86	55	187.37
Φ2.5×54	2.5	54	3.5	204	0.48-1.45	55	196.29
Φ2.7×42	2.7	42	3.5	320	0.10-1.52	55	198.5
Φ2.8×44	2.8	44	3.5	400	0.437-2.18	55	201.58
Φ3.0×45	3	45	3.5	500	0.5-2.47	75	210.94
Φ3.0×48	3	48	3.5	700	0.6-3.48	100	237
Φ3.0×60	3	60	3.5	800	0.3-2	100	310
Φ3.2×50	3.2	50	4	1000	0.6-3	125	278
Φ3.3×52	3.3	52	3.5	1300	0.266-2.66	125	283
Φ3.5×54	3.5	54	3.5	1500	0.55-3.4	220	363
Φ3.6×70	3.6	70	3.5	1800	0.25-1.25	125	419
Φ4.0×56	4	56	4	2300	0.41-4.07	315	456
Φ4.0×60	4	60	3.5	2500	0.396-3.96	315	510
Φ4.2×60	4.2	60	4	2750	0.4-3.98	375	633
Φ4.3×60	4.3	60	3.5	3200	0.396-3.96	375	583
Φ4.5×66	4.5	66	3.5	4000	0.41-4.1	560	710.4
Φ4.7×74	4.7	74	4	4500	0.35-4	630	849
Φ4.8×74	4.8	74	4	5000	0.396-3.96	630	899
Φ5.0×74	5	74	4	6000	0.35-4	710	944
Φ5.6×87	5.6	87	4	8000	Max4.23	800	1265
Φ6.0×95	6	95	4	10000	Max5	950×2	1659

Company Information

CITICIC began in 1956-The largest mining equipment and cement equipment manufacturers in China.CITICIC is a global supplier of technology and services to customers in the process industries,including
Mining,Construction,Metallurgical,Environmental,Power,Chemical,Marine,Casting&Forgings.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems.
Our factory in Luoyang covers more than 3 million square meters, of which 2 million square meters is under cover. It has a total workforce of approximately 10,000 employees of which more than 1,200 are engineers.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems Etc.

Machining Equipment	Fabrication Equipment
Casting & Forging Equipment	Heat treatment Equipment

12000 TPD Cement Production Plant cement rotary kiln factory with high quality 0

Our Services

Aftersales service
CITIC Heavy Industries is your business partner in the After Market.

CITICIC able to provide:

1.    ENGINEERED SPARES - DESIGN AND MANUFACTURING

2.    LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3.    HUGE MACHINE SHOP CAPABILITIES

4.    TRAINING PROGRAMMES

5.    PREVENTATIVE MAINTENANCE PROGRAMS

6.    PREVETATIVE MAINTENANCE SERVICES

7.    COMPREHENSIVE MAINTENANCE PROGRAMS

CITIC’s Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.

Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.

CITICIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
